Kometos Meat Processing Plants
Kometos Finmodules meat processing plants provide a modular, hygienic and scalable way to build complete production facilities for meat products, ready meals, cutting, packing, freezing and storage. The range covers smaller five-module facilities through to larger fourteen-module plants, with complete turnkey delivery and factory-built modules designed for demanding food-industry environments.
Overview
- ApplicationsMeat cutting, sausages, smoked products, full meat products, ready meals and dumplings
- Capacity rangeApprox. 1,000–4,000 kg per shift depending on model
- Module range5, 6 and 14 module configurations
- Approx. size210–588 m²
- DeliveryFactory-built modular facility, configured to production needs

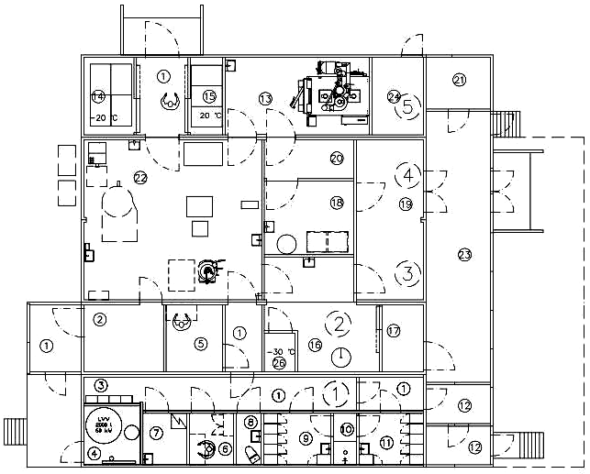

Finmodules 5 module plant for meat products and ready-meals (M2.5)
- Product number1001080205
- CapacitySausages and meat products: 1,000 kg / shift
- Ready-meal capacityDumplings: 200 kg / shift
- ProductsCooked and smoked sausages, frankfurter, dumplings
- Electricity400 V, 50 Hz, 400 A
- Water70–100 l/min, 4 bar, 2”
- Waste waterø 160 mm
- Modules5 pcs
- Approx. size210 m²
- UnitsSocial premise; production premise; cutting and packing premises; receiving premise for raw material

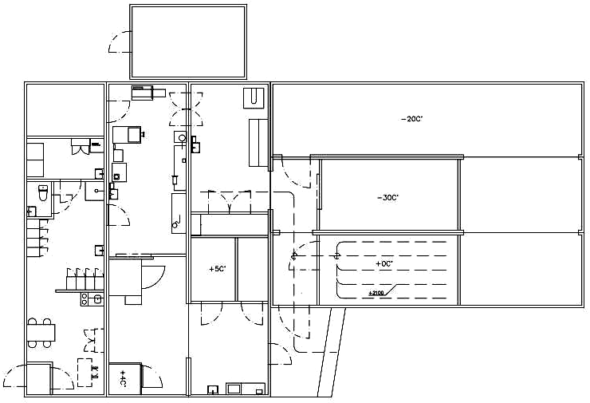

Finmodules 6 module plant for meat products (M2.6)
- Product number1001080206
- Capacity2,000 kgs / shift
- ProductsSausages, cold- and warm-smoked products, full meat products
- Electricity400 V, 50 Hz, 200 A
- Water50 l/min, 4 bar, 2”
- Waste waterø 110 mm
- Modules6 pcs
- Approx. size252 m²
- UnitsTechnical and social premises; production premise; production and packing premise; freezing storage; freezing tunnel and storage; receiving premise for carcasses; technical premise

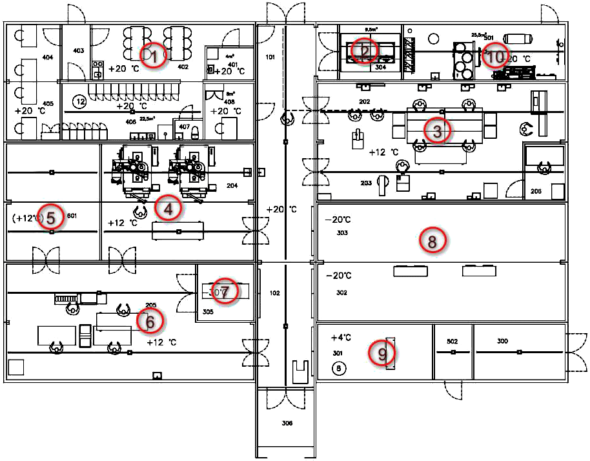

Finmodules 14 module plant for meat products (M4.14)
- Product number1001080414
- Capacity4,000 kgs / shift
- ProductsSausages, cold- and warm-smoked products, full meat products
- Electricity400 V, 50 Hz, 2 × 200 A
- Water50 l/min, 4 bar, 2”
- Waste waterø 110 mm
- Modules14 pcs
- Approx. size588 m²
- UnitsTechnical and social premises; production premise; production and packing premise; freezing storage; warehouse for finished products; technical premises
Why choose this Kometos solution?
- Flexible production layoutsThe modular structure allows the plant to be tailored around capacity, products and future expansion.
- Complete production chainFacilities can be combined with slaughtering, freezing, thawing and storage systems as part of one project.
- Built for demanding conditionsDurable hygienic modules are designed for large temperature changes and demanding production environments.
Source product family: Kometos Finmodules. For pricing, layout planning and specification checks, contact Global Food Technology.
